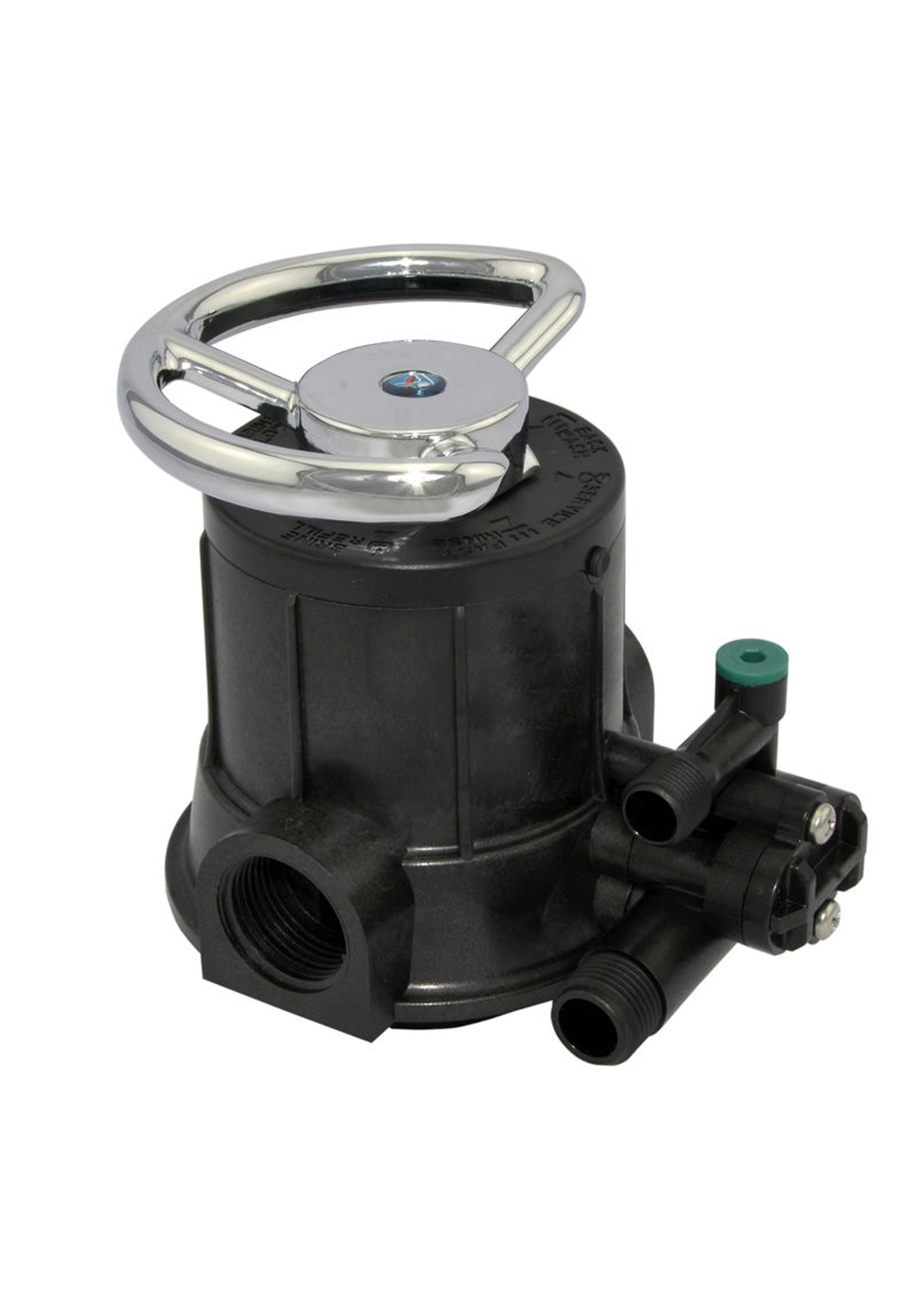

Manual Water Softener Control Valve with Multiple Functions for Home Softening Systems and Ion Exchange Equipment RO pretreatment softening system, boiler softening water system, etc.
Categories: Spare Parts & Accessories
Features of the manual softener valve:
■ For opening and closing, it uses hermetic head faces with high degree pottery and corrosion resistance.
■ When a single tank type is regenerating, no water passes the valve.
There are two different installation methods: side mounting or top mounting.
■ Plastic or metal handles as options for handles
Range of use for a manual softener valve:
Softening system for homes
Ion-exchange apparatus
Water softening system for boilers
RO softening system for pretreatment, etc.
Manual softner valve technical parameters:
| Water Pressure | 0.15—0.6MPa |
| Water Temperature | 5℃-50℃ |
| Water Turbidity | Down-flow regeneration＜5FTU |
| Inlet/Outlet | 1″F |
| Drain | 1/2″M |
| Brine Line Connector | 3/8″M |
| Base | 2.5″-8NPSM |
| Riser Pipe | 1.05 ″OD |
| Max Flow Rate | 4 m3/h |
| Suitable Tank Size (in) | 6″～18″ |
